With the imminent launch of the Raspberry Pi 5 I wondered - how long does it take to compile the latest LLVM release (17 at the time of writing this blog) on the Raspberry Pi 4. This will give me a baseline that I can test the Raspberry Pi 5 against once I get ahold of it.

For my initial exploration I decided to test just three things:

  1. Using the stock Clang compiler I could get at via apt get to compile LLVM. This is Clang 11 at the time of writing this post.
  2. Use the Clang 17 compiler built above to compile LLVM itself again. This stage will mean that the LLVM code itself is being built with the latest compiler.
  3. Then use the stage 2 compiler to compile LLVM a third time. This will test whether the Clang 17 compiler built by the Clang 17 compiler is more optimal.

I decided to just build with CMAKE_BUILD_TYPE=RELEASE, and I decided to build the Bolt, Clang, LLD, and compiler-rt subprojects. Just to keep it simple but interesting!

So what are the results?

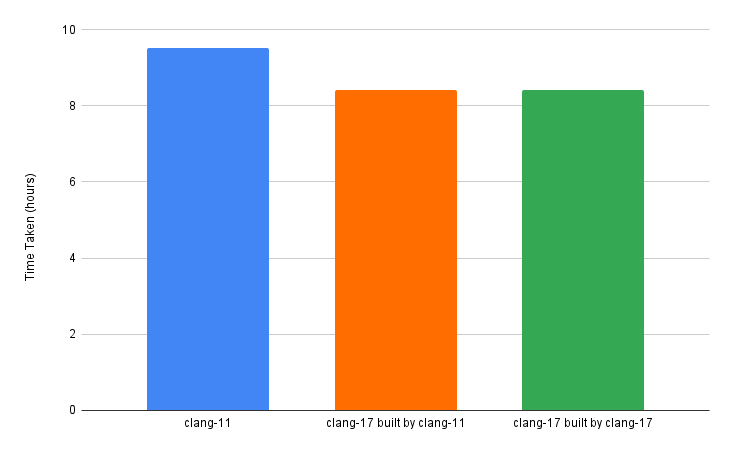

First lets look at the time taken:

As can be seen in the chart it takes a cool 9.52 hours to build with the stock Clang 11 compiler. First observation - wow that’s a long time! But the Clang 17 compiler we built with Clang 11 goes a cool 12.9% faster, coming in at 8.42 hours. The Clang 17 compiler built with Clang 17 would reliably run a smidge faster at 13.3% faster than Clang 11, coming in at 8.40 hours.

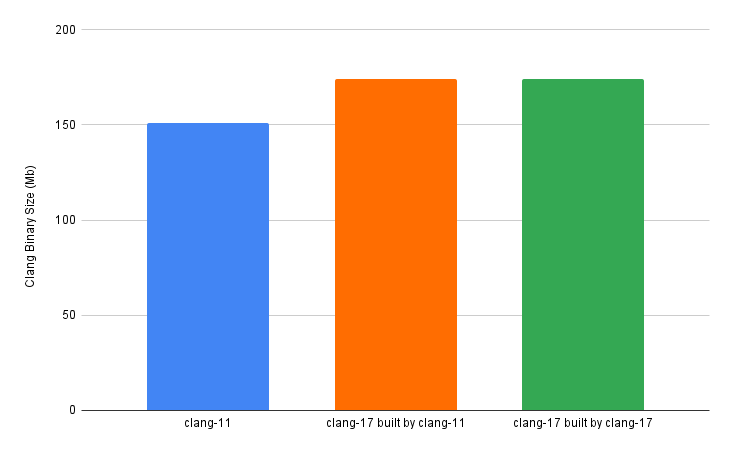

And now the binary size of Clang too:

The binary size of the compiler built with Clang 17 was identical in both cases, which is as expected (it’d only differ if there was a compiler bug or some sort of non-deterministic behaviour in the compiler). The binary built with Clang 17 is 15.3% larger than the binary built with Clang 11.

Overall this result shows that Clang 17 is faster than Clang 11, but it is achieving this in part with a sizable increase in binary size.

It’ll be interesting to see how the Raspberry Pi 5 compares in comparison once I can test it!
